Schematic Audio Amplifer with IC AN315

This Schematic Require voltage 9 - 18 Volt. Good voltage for this schematic is 12 V. This is Mono amplifier with output 5,5 Watt and impedance 8 Ohm. You can make this Circuit easily because i give simple and clear scheme.

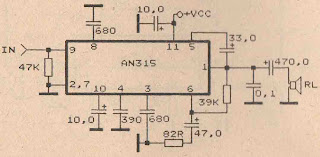

See this Schematic and Datsheet IC AN315 :


Click to Enlarge



Datasheet IC AN315
Vcc                = 9-18 V
Pout               = 5,5 W
RL                  = 8 Ohm
Ft                   = 30hz - 18Khz
Icco                = 28 mA
Package         = SIP2-11
Manufactered = MATSUSHITA
